The application of PSA Nitrogen Generator systems at coal mine shaft heads efficiently enables goaf inerting and fire prevention while ensuring low operational costs and stable nitrogen supply for improved MiningSafety.
In practical applications, long-term operation may contaminate molecular sieves and reduce efficiency. High dust and humidity levels affect system stability, while valve wear, pressure fluctuation, and delayed maintenance may lead to nitrogen purity falling below operational standards, threatening safe and continuous mine production.
To maintain stable operation, the air compressor after-treatment filter cartridges should be replaced regularly, and the inlet air quality should be strictly controlled. The equipment room must remain dry and clean, while scheduled maintenance should be strictly implemented. Any abnormal operating condition should result in immediate shutdown and troubleshooting to ensure the continuous production of qualified high-purity nitrogen. Compared with traditional liquid nitrogen supply and cylinder transportation, onsite Nitrogen Plant systems provide lower operational costs, faster response capability, and more reliable performance. The following sections further explain the complete system arrangement, industrial applications, and technical features of the BXN-3000E 97% nitrogen generation solution.

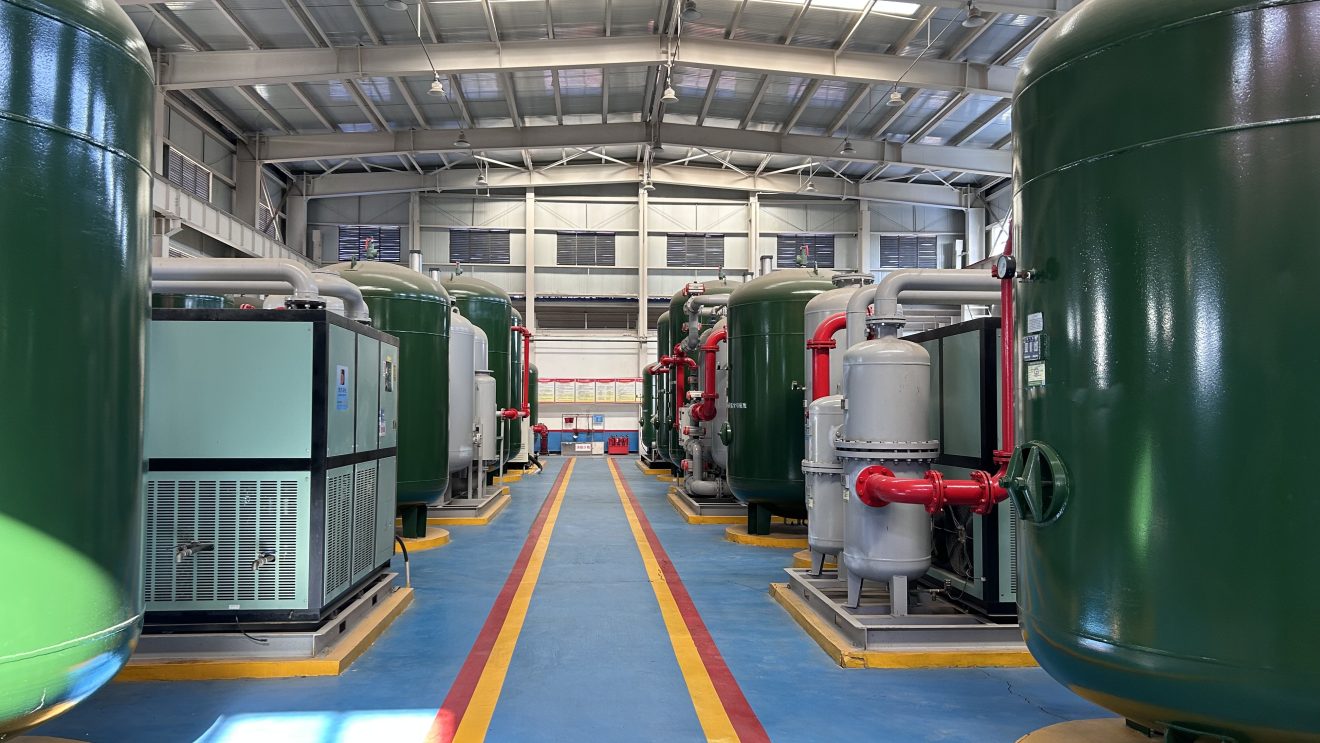

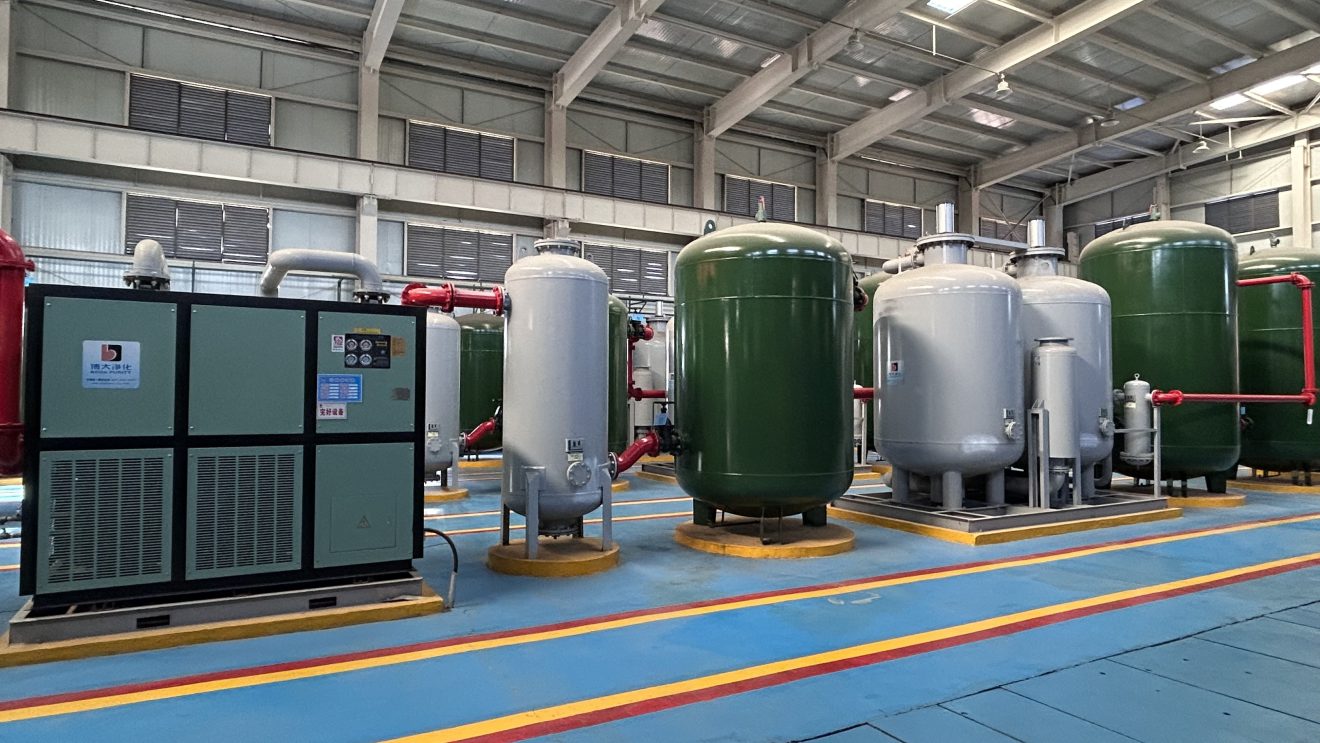

Complete N2 Package with Arrangement
The FAD-120/8-BXN-3000E-CG-15/10 nitrogen generation package is a complete onsite nitrogen production solution specifically designed for demanding CoalMining environments. The integrated system combines compressed air generation, purification, storage, and PSA nitrogen separation into one coordinated package capable of delivering 3000 Nm³/h nitrogen at 97% purity. The entire arrangement is engineered to ensure a stable gas supply, high operational efficiency, and continuous unattended operation.
- The system includes an air compressor, high-efficiency oil removal filter, activated carbon filter, precision filters, air receiver tank, and PSA nitrogen generator.
- The air compressor supplies stable compressed air to the entire process.
- The high-efficiency oil removal filter and activated carbon filter perform deep oil removal to protect the carbon molecular sieves from contamination and oil poisoning, which are among the most common causes of PSA performance degradation.
- Precision filters effectively remove fine dust particles and moisture from the compressed air before it enters the adsorption towers.
- The air receiver tank stabilises pressure fluctuations and ensures continuous airflow, improving overall system reliability.
- The PSA nitrogen generator uses advanced carbon molecular sieve technology to selectively adsorb oxygen while allowing nitrogen to pass through, thereby achieving high-purity nitrogen separation.
Structural design reduces installation space while simplifying transportation and maintenance. The equipment also supports intelligent automation functions such as automatic fault diagnosis, alarm systems, and optional remote monitoring, making it highly suitable for modern Engineering projects requiring a stable and efficient industrial gas supply.
N2 Applications in the Coal Mining Industry
Nitrogen has become an essential industrial gas in modern mining operations due to its excellent inerting and fire prevention capabilities. Typical nitrogen purity requirements in mining industries range from 95% to 98% N₂, making PSA nitrogen generation systems ideal for onsite applications. The BXN-3000E 97% nitrogen generator provides continuous nitrogen production without dependence on external liquid nitrogen transportation or cylinder replacement, significantly reducing operational costs and supply risks.
One of the most important applications is extinguishing coal mine fires and preventing spontaneous combustion in goaf areas or abandoned mine sections. Injecting nitrogen into these areas lowers oxygen concentration below combustion limits, effectively reducing the risk of explosions and underground fires. Nitrogen is also used for inerting sulphuric acid plants during heap leaching operations and purging LPG pipelines in copper, nickel, and uranium mining operations.
Additional applications include fire suppression, inerting and purging, pressure testing, and dust suppression. Nitrogen is particularly valuable in underground mining environments because it is dry, non-reactive, and environmentally friendly. Compared with conventional firefighting methods, onsite nitrogen generation provides faster emergency response capability and continuous gas availability. As mine operators increasingly focus on operational safety and energy efficiency, PSA nitrogen systems are becoming a critical part of modern MiningSafety infrastructure.
Features
-
Mine Fire Prevention
One of the primary functions of nitrogen in coal mines is preventing spontaneous combustion and reducing explosion risks. Underground mines contain large quantities of combustible gases and residual coal, making oxygen reduction essential for maintaining safe operating conditions. Nitrogen injection effectively lowers oxygen concentration inside sealed or abandoned mining areas, suppressing oxidation reactions and significantly reducing the likelihood of underground fires.
The BXN-3000E 97% PSA nitrogen generator is specifically engineered to provide stable nitrogen flow and reliable purity for continuous fire prevention applications. Advanced carbon molecular sieve filling technology improves nitrogen generation efficiency while reducing molecular sieve pulverisation caused by airflow impact. The adsorption towers adopt optimised airflow distribution structures to minimise wear and extend service life. Automatic control systems continuously monitor operating conditions and provide alarm and troubleshooting functions, ensuring long-term stable performance in harsh CoalMining environments.
2. Non-Aggressive Firefighting Source
Unlike traditional firefighting agents such as water, powder, or foam, nitrogen is a clean and non-corrosive firefighting medium. Nitrogen does not damage electrical systems, conveyor equipment, pipelines, or steel structures during fire suppression. Once firefighting operations are completed, the affected area can simply be ventilated without causing secondary contamination or corrosion.
This advantage is especially important in underground mines where electrical equipment and mechanical systems are expensive and difficult to replace. Water-based firefighting systems may cause corrosion, equipment damage, or operational downtime, while nitrogen leaves no residue and does not affect surrounding infrastructure. Since nitrogen naturally exists in the atmosphere, it also provides environmentally friendly fire suppression with minimal environmental impact. Continuous onsite nitrogen production ensures that mining operations always have immediate access to a reliable firefighting source during emergency situations.
3. Stationary or Mobile Solution
Nitrogen generation system can be configured as either a stationary installation or a mobile containerised unit, depending on project requirements. For permanent mining facilities, the stationary system provides long-term stable operation with integrated compressed air purification and centralised control systems. For temporary projects or emergency response operations, the equipment can also be supplied as a skid-mounted or containerised mobile unit for easy transportation and rapid deployment.
Mobile nitrogen generation solutions are particularly suitable for remote mining areas, open-pit mines, and emergency fire suppression applications where infrastructure may be limited. The modular structure simplifies installation and commissioning while reducing on-site engineering work. BODA GAS TECH can provide customised solutions based on nitrogen flow requirements, purity levels, environmental conditions, and available installation space. This flexibility enables mining operators to deploy reliable NitrogenGenerator systems quickly and economically across a wide range of industrial environments.
Applications of Nitrogen Gas Generators in Industries
- Besides mining applications, PSA nitrogen generation systems are widely used across numerous industrial sectors requiring a reliable and cost-effective nitrogen supply.
- In the oil and gas industry, nitrogen is used for pipeline purging, pressure testing, tank blanketing, and enhanced oil recovery.
- Chemical plants use nitrogen to prevent oxidation reactions and maintain safe processing conditions for flammable materials.
- In electronics and semiconductor manufacturing, high-purity nitrogen protects sensitive components from contamination and oxidation during soldering and assembly processes.
- Food and pharmaceutical industries use nitrogen for packaging preservation, sterile processing, and oxidation prevention.
- Metallurgical industries apply nitrogen in annealing, heat treatment, and protective atmosphere processing.
- New energy industries also rely heavily on nitrogen for lithium battery production and hydrogen energy applications.
Compared with traditional liquid nitrogen delivery systems, onsite NitrogenPlant solutions eliminate transportation dependency, reduce operational costs, and ensure uninterrupted nitrogen availability. BODA GAS TECH has more than 24 years of experience in manufacturing PSA nitrogen generators and compressed air purification systems. The company provides customised solutions with optional remote monitoring, dew point detection, energy-saving control systems, and intelligent communication protocols. Through advanced Engineering design, reliable manufacturing, and strict quality control, BODA nitrogen generation systems continue to support efficient and safe industrial operations worldwide.
