Large multinational corporations demand safer, longer-lasting nitrogen systems; ASME standard pressure vessels and IEC standard electrical components ensure top manufacturing and welding quality. Containerized, plug-and-play units withstand harsh environments and reduce carbon emissions through on-site nitrogen gas plant solutions.
ASME-standard Pressure Swing Adsorption (PSA) nitrogen generator containers are fully integrated, mobile or stationary on-site nitrogen generators designed to meet ASME VIII-1 standards for pressure vessels. These containerized units are widely used in oil & gas, food packaging, and pharmaceutical industries.
When selecting a nitrogen supply solution, users typically compare three main configurations: traditional centralized supply, skid-mounted nitrogen generator systems, and fully containerized nitrogen plant solutions. Each option presents different advantages in terms of mobility, installation complexity, cost efficiency, and operational flexibility. Understanding these differences helps decision-makers choose the most suitable portable nitrogen generator or mobile N₂ station for their specific industrial requirements.
1. Containerized PSA Nitrogen Generator

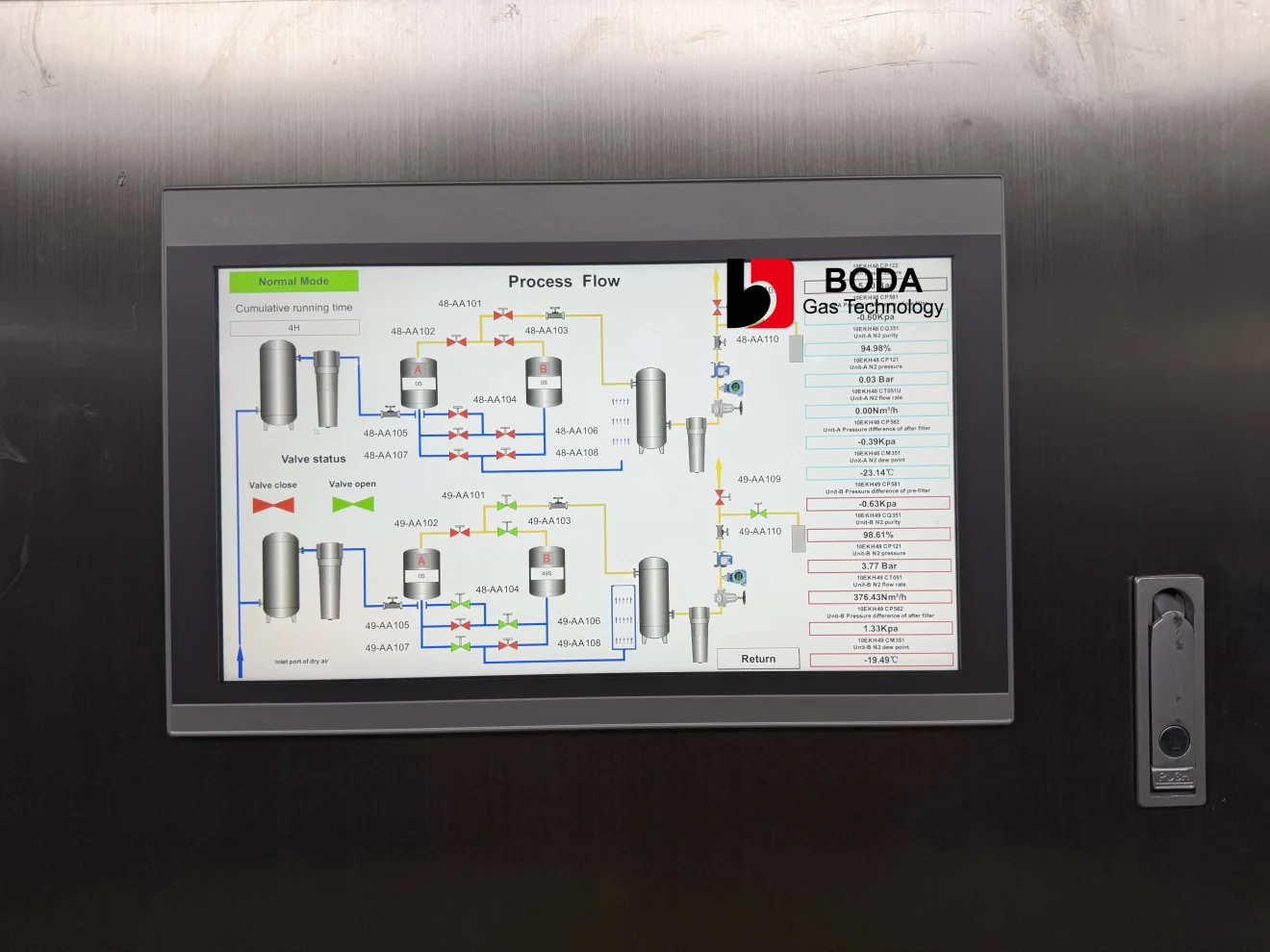

The containerized PSA nitrogen generator represents an advanced evolution of the on-site nitrogen gas plant concept. By integrating all core components—including air compressor interfaces, purification systems, adsorption dryer, N2 generator, LCP cabinet, and control units—into a standardized container, the system achieves a highly compact and efficient structure. This design inherits the benefits of a skid-mounted nitrogen generator while adding enhanced environmental protection and operational stability.

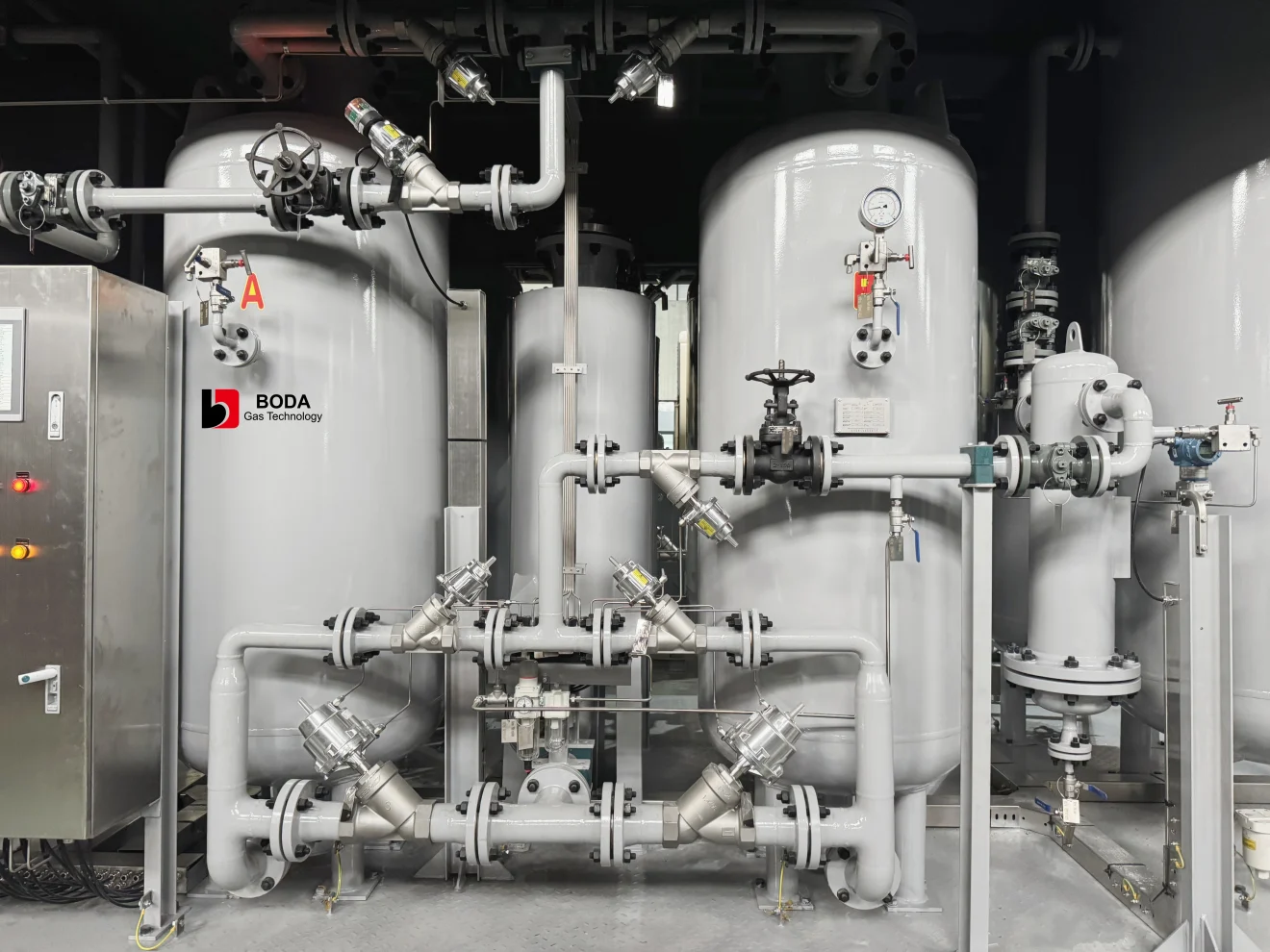

Inside the containerized nitrogen plant, compressed air is first treated through multi-stage filtration and drying systems to remove oil, water, and dust. The purified air then enters the PSA towers filled with high-performance carbon molecular sieves, where oxygen is selectively adsorbed, allowing nitrogen to pass through as the product gas. This process ensures stable nitrogen purity ranging from 95% to 99.999%, meeting diverse industrial requirements.
Compared to traditional installations, the portable nitrogen generator in a containerized format significantly reduces on-site construction work. The enclosure provides protection against rain, dust, and extreme temperatures, while optional insulation and air conditioning maintain optimal operating conditions. This makes the mobile N₂ station particularly suitable for remote oilfields, offshore platforms, and harsh industrial environments.
2. Process Features
- The BXN-400 96% ASME standard containerized nitrogen system is engineered with advanced process features to ensure reliability, safety, and continuous operation.
- One of the most critical characteristics is its fully redundant design (2 × 100% flow capacity). This means the system includes two independent nitrogen generator lines along with complete filtration systems, ensuring an uninterrupted nitrogen supply even during maintenance or unexpected failures.
- Each N2 generator within the containerized nitrogen plant can be completely isolated without affecting the operation of the other units. This allows maintenance activities to be carried out safely while production continues. Additionally, both generators can operate simultaneously to achieve up to 200% of the rated nitrogen flow, providing flexibility during peak demand conditions or emergency situations.
- All piping connections utilize ANSI/ASME standard flanges, ensuring compatibility with international industrial systems and maintaining high safety standards under pressure conditions.
- Furthermore, all internal equipment is designed to meet C4-VH corrosion protection standards, making the system highly resistant to aggressive environments such as coastal areas, chemical plants, and offshore installations.
These features, combined with intelligent control systems, automatic fault diagnosis, and stable airflow distribution, ensure that the skid-mounted nitrogen generator operates efficiently with minimal downtime and extended service life.
3. Key Benefits of On-site Nitrogen Generation
- Adopting an on-site nitrogen gas plant offers numerous advantages compared to traditional liquid nitrogen supply methods.
- One of the most significant benefits is rapid deployment. The entire containerized nitrogen plant is fully assembled, tested, and commissioned in the factory before delivery. Once transported to the site, it only requires simple utility connections such as power and piping to become operational, dramatically reducing installation time.
- Mobility is another key advantage. As a portable nitrogen generator, the system can be easily relocated and redeployed for different projects. This is particularly valuable for industries such as oil and gas, where operations frequently shift between locations. The mobile N₂ station design ensures that the investment remains flexible and reusable across multiple sites.
- The factory-built nature of the system guarantees consistent quality and performance. After transportation, the unit can start production immediately upon power-up, eliminating the need for complex commissioning procedures. This reduces project delays and ensures a reliable nitrogen supply from day one.
- Modern containerized systems are also equipped with smart IoT nitrogen generator features. These include remote monitoring, real-time data analysis, and predictive maintenance capabilities, allowing operators to optimize performance and reduce operational costs. Additionally, the system can function as an emergency nitrogen supply unit, ensuring continuous operation during unexpected supply disruptions.
4. Applications of Nitrogen Gas Generators in Industries
The application range of nitrogen generators continues to expand across multiple industries due to their efficiency, safety, and cost advantages. In the oil and gas industry, containerized nitrogen plants are widely used for nitrogen injection in enhanced oil recovery, pipeline purging, and pressure testing. Their ability to operate reliably in harsh environments makes them essential equipment for upstream and midstream operations.
- In the chemical and pharmaceutical industries, nitrogen is used for inerting, blanketing, and preventing oxidation during production and storage processes. The high purity and stability provided by PSA systems ensure product quality and safety compliance. The skid-mounted nitrogen generator design allows seamless integration into existing production lines.
- Food packaging is another major application area, where nitrogen is used to extend shelf life by displacing oxygen and preventing spoilage. The portable nitrogen generator ensures a continuous and cost-effective supply without relying on external deliveries.
- In electronics and metallurgy, high-purity nitrogen is essential for processes such as soldering, heat treatment, and protective atmospheres. The flexibility of a mobile N₂ station allows it to support various production environments, from fixed factories to temporary project sites.
Overall, the versatility of containerized systems makes them an ideal solution for industries requiring reliable, efficient, and environmentally friendly nitrogen supply.
ASME containerized nitrogen systems deliver safer, stronger, and more adaptable solutions for high-risk industrial applications and demanding environments.
