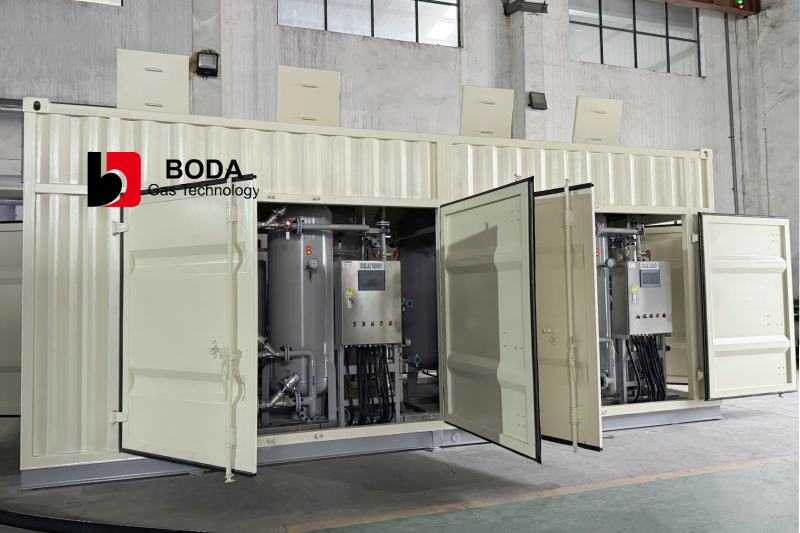

Integrated skid-mounted containerized nitrogen generators have become the preferred choice for oilfields, pipeline engineering, power plants, and industrial facilities due to their mobility, weather resistance, and high operational efficiency.
If a company’s production line requires continuous or temporary nitrogen supply, relying on externally purchased nitrogen cylinders can be expensive, difficult to manage, and vulnerable to supply interruptions that may affect production schedules and operating costs.
By selecting our proprietary skid-mounted nitrogen generator, nitrogen purity can be adjusted according to demand, nitrogen flow is automatically regulated, and only electricity is consumed during operation. The system also supports on-site nitrogen cylinder filling within the factory.
1. What Does a Complete Nitrogen Generator System Consist Of?

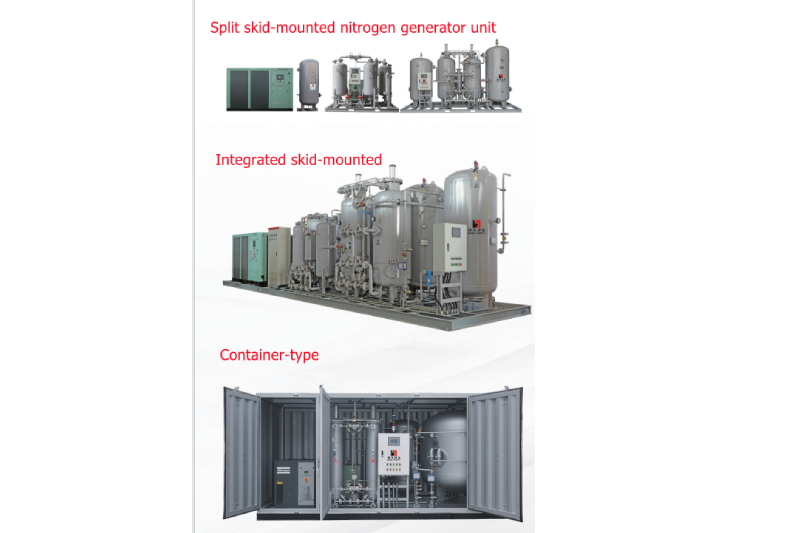

A complete skid-mounted PSA nitrogen generator system integrates all critical equipment required for stable nitrogen production onto a common skid structure. This integrated design minimizes installation time, simplifies transportation, and significantly reduces on-site construction requirements.
The nitrogen generation system typically consists of an air compressor, air receiver tank, multi-stage precision filters, refrigerated dryer, adsorption dryer, high-efficiency oil eliminator, activated carbon filter, dual-tower PSA nitrogen generator unit, nitrogen storage tank, electrical control cabinet, piping system, lighting system, cable assemblies, instrumentation, and supporting steel skid frame.
The air compressor supplies compressed air to the system. The air receiver stabilizes pressure fluctuations, while the precision filtration system removes contaminants such as water, oil aerosols, and dust particles. The refrigerated dryer and adsorption dryer further reduce moisture content, ensuring optimal protection of the carbon molecular sieves inside the PSA nitrogen generator.
The dual-tower nitrogen generator unit serves as the core of the system. Through Pressure Swing Adsorption technology, oxygen molecules are selectively adsorbed while nitrogen passes through as the product gas. The generated nitrogen is stored in a nitrogen buffer tank before being delivered to end users.
Each skid-mounted nitrogen generation system can be customized according to specific nitrogen flow rate, purity, and pressure requirements. Whether customers require 95%, 99.5%, or 99.999% nitrogen purity, the system can be engineered to meet exact process demands while maintaining stable performance and energy efficiency.
2. What Is Nitrogen Used For?
One of the most frequently asked questions is: What is nitrogen used for? Nitrogen is one of the most versatile industrial gases and plays a vital role across numerous industries. Due to its inert properties, nitrogen helps prevent oxidation, combustion, contamination, and moisture-related damage.
In the oil and gas sector, nitrogen is used for pipeline purging, pressure testing, tank blanketing, enhanced oil recovery, well stimulation, and inerting operations. In food processing industries, nitrogen preserves freshness and extends shelf life by displacing oxygen from packaging environments.
In electronics manufacturing, high-purity nitrogen protects sensitive components during soldering and assembly processes. Pharmaceutical companies use nitrogen to maintain sterile production conditions and protect products from degradation.
Many people also ask what is a use for nitrogen in everyday industrial operations. A common application is protecting materials from oxidation during storage and transportation. Nitrogen is also used in laser cutting, chemical processing, metallurgy, mining, power generation, and semiconductor manufacturing.
Questions such as what nitrogen is used for often arise because it has countless applications. Historically, people even ask what was nitrogen used for in earlier industrial development. For decades, nitrogen has been essential for preserving product quality, improving safety, and increasing operational efficiency. Today, modern PSA nitrogen generators make nitrogen production more economical and accessible than ever before.
3. Cost-Effectiveness
One of the most significant advantages of a skid-mounted PSA nitrogen generator is its outstanding cost-effectiveness. Traditional nitrogen supply methods often require recurring purchases of nitrogen cylinders or liquid nitrogen deliveries. These expenses accumulate rapidly, particularly in facilities with continuous nitrogen demand.
By generating nitrogen onsite, businesses eliminate transportation charges, cylinder rental fees, handling costs, and delivery delays. Since the nitrogen generation system uses ambient air as its raw material, the primary operating expense becomes electricity consumption.
The flanged nitrogen outlet can be connected directly to existing production equipment, storage vessels, filling stations, or process pipelines. This flexibility allows users to integrate the nitrogen supply into virtually any industrial application without significant modifications.
The operation is remarkably simple. The system features one-button startup and fully automated control. Once started, the PSA nitrogen generator automatically adjusts operating parameters to maintain required nitrogen purity and flow rates.
Because the system operates at ambient temperature and relatively low pressure, there are no significant operational safety hazards associated with cryogenic liquids or high-pressure cylinder handling. The result is lower operating costs, improved workplace safety, and a faster return on investment compared to conventional nitrogen supply methods.

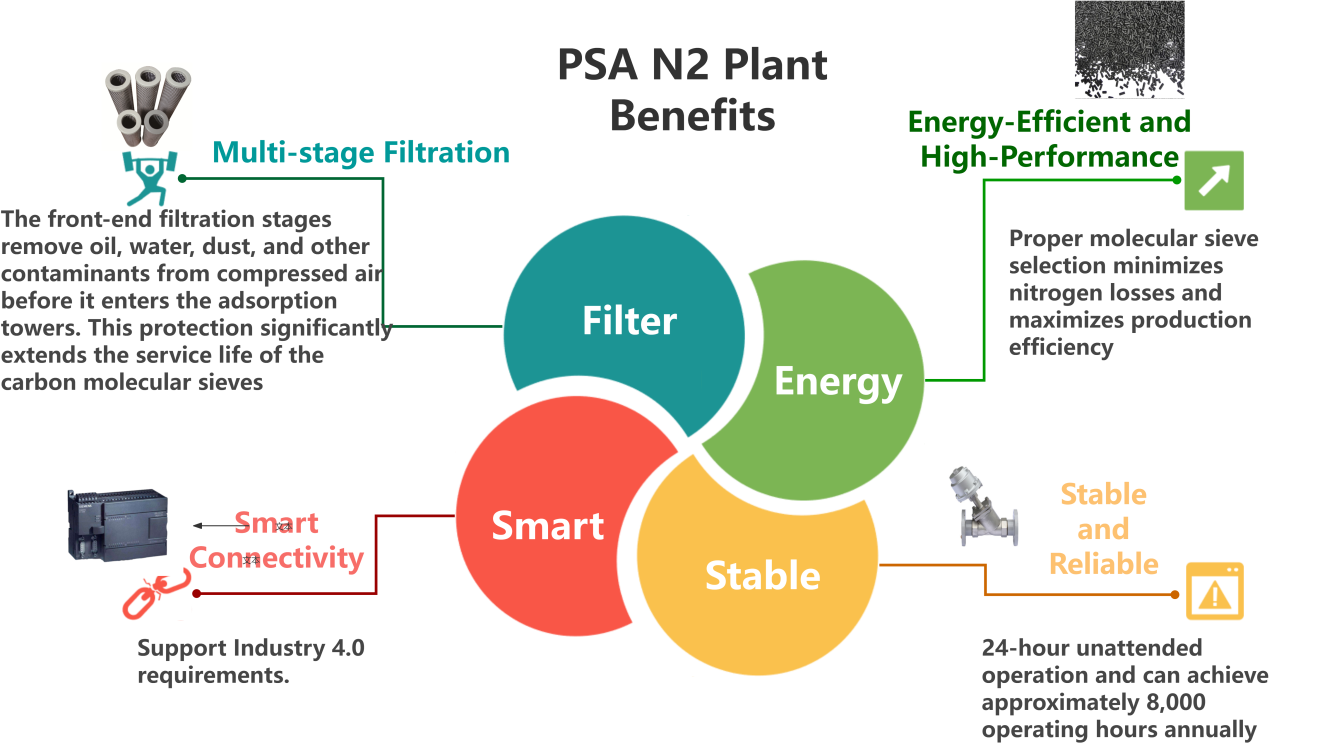

4. Benefits
4.1 Multi-stage Filtration
Each skid-mounted PSA nitrogen generator is equipped with a sophisticated multi-stage filtration system. The front-end filtration stages remove oil, water, dust, and other contaminants from compressed air before it enters the adsorption towers. This protection significantly extends the service life of the carbon molecular sieves.
A dedicated rear-end dust filter further removes residual impurities from the finished nitrogen stream, ensuring that the product gas consistently meets purity specifications. This multi-layer filtration approach improves reliability and reduces maintenance requirements.
4.2 Energy-Efficient and High-Performance
Advanced PSA nitrogen generators utilize high-performance carbon molecular sieves specifically selected for efficient oxygen adsorption. Proper molecular sieve selection minimizes nitrogen losses and maximizes production efficiency.
The intelligent PLC control system continuously monitors pressure, purity, flow rate, and operating conditions. Based on real-time demand, the controller optimizes adsorption cycles and energy consumption, delivering maximum nitrogen output with minimum operating cost.
This combination of advanced carbon molecular sieves and intelligent automation allows the nitrogen generation system to achieve excellent performance while maintaining low energy consumption.
4.3 Smart Connectivity
Modern industrial facilities increasingly require remote monitoring and data integration capabilities. Our skid-mounted nitrogen generation systems are designed to support Industry 4.0 requirements.
Through Modbus and similar communication protocols, operational data can be transmitted to central monitoring systems, SCADA platforms, or plant management software. Operators can remotely monitor nitrogen purity, flow rate, pressure, alarms, maintenance schedules, and system status in real time.
This connectivity improves maintenance planning, enhances equipment reliability, and enables rapid response to operational changes.
4.4 Stable and Reliable
Reliability is one of the most important considerations when selecting a nitrogen generation system. Our skid-mounted PSA nitrogen generators are engineered for continuous operation and long service life.
The system supports 24-hour unattended operation and can achieve approximately 8,000 operating hours annually. High-quality valves, durable carbon molecular sieves, precision control systems, and optimized airflow design contribute to exceptional long-term stability.
The integrated skid structure also simplifies maintenance and equipment inspection. Spare parts can be easily accessed and replaced, minimizing downtime and ensuring continuous nitrogen supply for critical production processes.
High-purity nitrogen reaches specification within 30 minutes of startup, providing fully automatic, plug-and-play, stable operation.
Conclusion: Would you like to learn more about cms nitrogen generator configurations? Feel free to call us anytime to discuss.
